Whole tractor specification
- Tractor model: CT-65
- Tractor type: Crawler type
- Max. Qty of wood skidding: Big end of wood forward—6m³; Small end of wood forward—8m³
- Outline dimension: (L*W*H) 5500*2250*2600mm
- Rail-distance: 1480mm
- Wheel base: 2040mm
- Ground clearance: 510mm
- Structural mass: 7500+/-5% kg
- Everage ground pressure: 58KPa
- Winch traction force: 55.8KN
- Structure affordable vertical force: 29.4KN
- Suitable working slope: Lengthways direction—Max. 25 degree; Transverse direction—Max. 18 degree
The calculated running speed and tractive force
| Gear | I | II | III | IV | V | Rear |
|---|---|---|---|---|---|---|
| Running speed (km/h) | 2.8 | 3.77 | 4.93 | 7.6 | 12.45 | 2.6 |
| Tractive force (N) | 45822 | 32463 | 23379 | 12947 | 5495 |
Skidding equipment specification
- Winch rotation speed: Winding—35.5rpm; Releasing—33rpm
- Dia of the steel cable of winch: 17mm
- Length of steel cable: 40m
- Width of the carrying plate: 1708mm
- Track-clearer: Light push shovel type, hydraulic
Engine specification
- Engine model: LR4B5-19
- Rated power: 47.8kw at 1900rpm
- Max. torque: 290Nm at 1250-1450rpm
- Max. fuel consumption: 242g/kw.h
- Idling: 700rpm

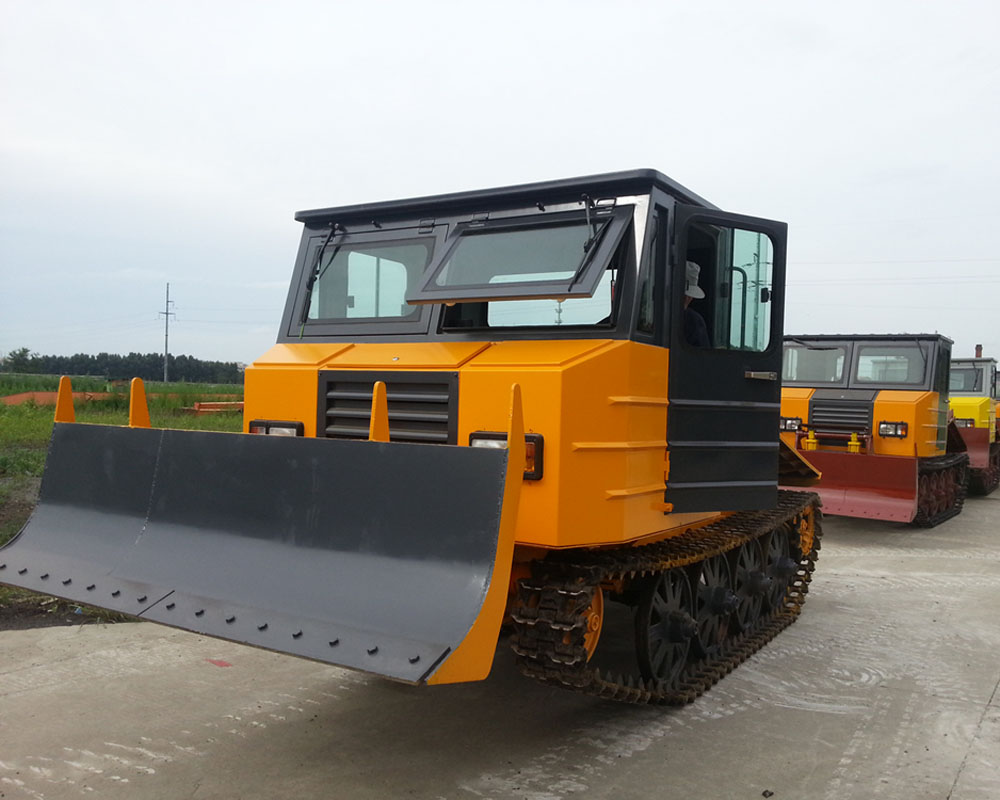

Product Gallery
