Whole tractor specification
- Tractor model: CT-30
- Tractor type: Crawler type
- Max. Qty of wood skidding: Big end of wood forward—2m³; Small end of wood forward—4m³
- Outline dimension: (L*W*H) 3850*1400*2280mm
- Rail-distance: 1080mm
- Wheel base: 1450mm
- Ground clearance: 350mm
- Structural mass: 3700 kg
- Everage ground pressure: 42.5KPa
- Winch traction force: 30KN
- Structure affordable vertical force: 30KN
- Suitable working slope: Lengthways direction—Max. 25 degree; Transverse direction—Max. 18 degree
The calculated running speed and tractive force
| Gear | I | II | III | IV | V | Rear |
|---|---|---|---|---|---|---|
| Running speed (km/h) | 2.74 | 4.92 | 9.25 | 13.5 | 1.62 | |
| Tractive force (N) | 35980 | 18470 | 8200 | 4520 |
Engine specification
- Engine model: N485BG
- Rated power: 26kw (35hp)

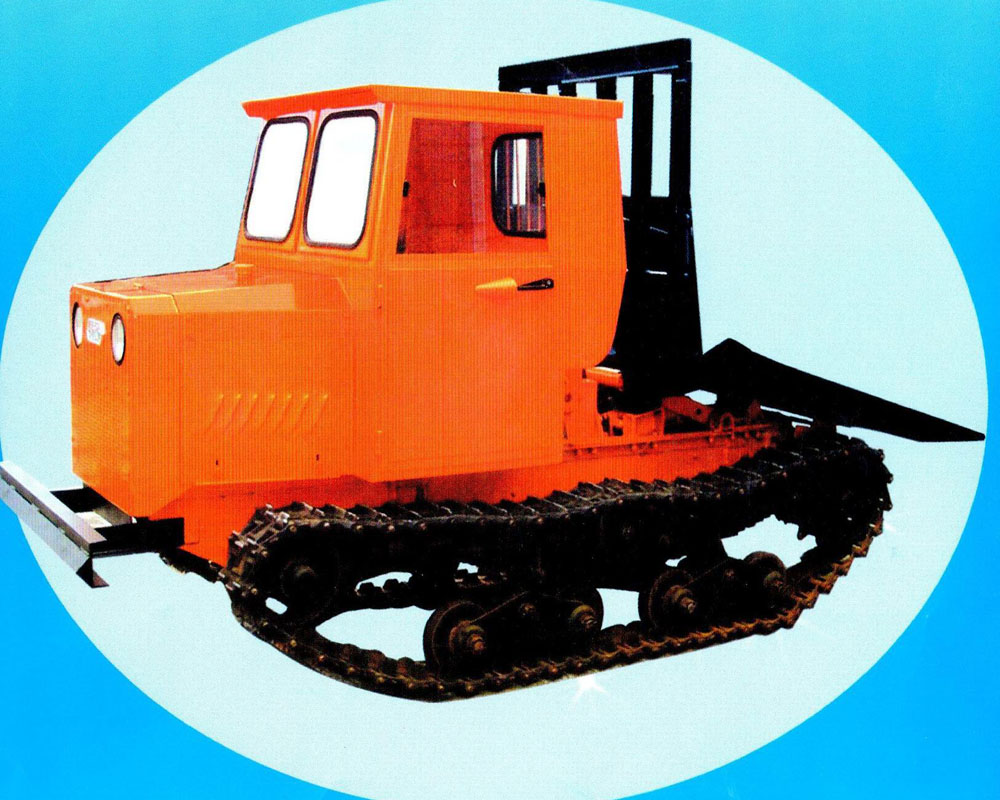

Product Gallery
